Token & COB

Token:

Applications:

Parking Meters/Management

Specifications:








Frequency


125 KHz ± 3% N 13.56MHz±3%




Size


30Φmm




Weight


2g




Material


ABS




Color


Customized color available




Protection Class


IP68




Operating/Storage
Temperature


-20°C- +60°C




Package


50 pcs/box / 100 pcs/box




Available
RFID
Chip


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard






Customized Item:

Laser engraving:

The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.



Inkjet number:

The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.


Mould opening:

According to the size, drawing and text provided by the customer, the mold is designed,and the customized parking ticket card is mass-produced.


Other items:

Product size, appearance color, and induction frequency can be customized.

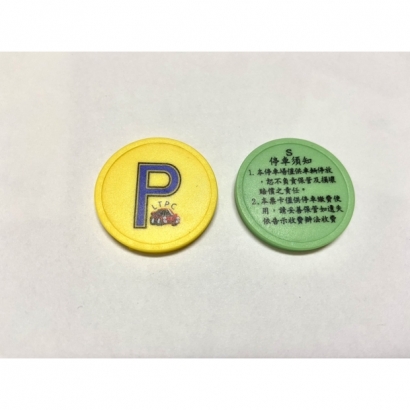

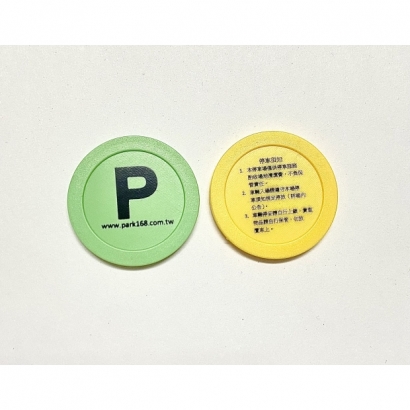

Parking Coin - 30 Outer Diameter 23 Inner Diameter:

Applications:

Parking Meters/Management


Specifications:







Frequency


125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3%




Size


30Φmm




Weight


2g




Material


ABS




Protection Class


Customized color availabe




Color


IP68




Operating Temperature


-20°C- +60°C




Process


Ultrasonic/Secondary Penetration Injection Molding




Package


50 Piece / Box ; 20 Box / 1 Carton




Available
RFID
Chip


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard




UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT





Customized Item:

Laser engraving:

The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.


Inkjet number:

The internal code of the Token is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.


Design mold:

According to the size, drawing and text provided by the customer, the mold is designed,and the customized parking ticket card is mass-produced.


Other items:

Product size, appearance color, and induction frequency can be customized.

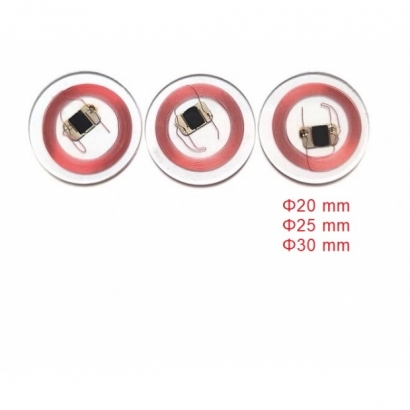

Clear Disc Tag:

Applications:

Coin-type transparent rubber buckle/lane control


Description:

Clear Disc Tag are suitable for further assembling and labelling as they are easy to handle. Clear Disc Tag are also available with adhesive foil on one side or with a central hole for easier tack.

Specifications:







Frequency


125 KHz ± 3% N 13.56MHz±3%




Size


Φ20 mm / Φ2.5 mm/ Φ30 mm




Weight


0.3g / 0.4g / 0.6g




Material


PU/PET




Color


Transparent




Operating/Storage
Temperature


-20°C- +60°C




Package


50 pcs/box / 100 pcs/box




Available
RFID
Chip


: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

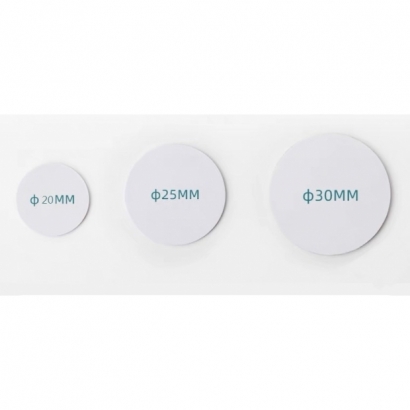

PVC Tag:

Applications:

Induction small patch/access control/item management/integrated proximity card, dual frequency card

Descriptions:

PVC Tag is an economic tag that can quickly fit an object for tagging purpose. Built by lamination process, the tag is graded as IP68.

Specifications:








Frequency


125 KHz ± 3% N 13.56MHz±3%




Size


Φ18mm /Φ20mm / Φ23mm / Φ25mm / Φ30mm / Φ32mm




Weight


lg (Φ20mm) / 1.1g (Φ25mm) / 1.2g (Φ30mm)




Material


PVC




Protection Class


IP68




Operating/Storage
Temperature


-20°C- +55°C




Package


50 pcs/box / 100  pcs/box




Available
RFID
Chip


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard






Customized Item:

Laser engraving:


The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.


Inkjet number:

The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.



Color printing:

Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture.



Other items:

Product size, appearance color, and induction frequency can be customized.

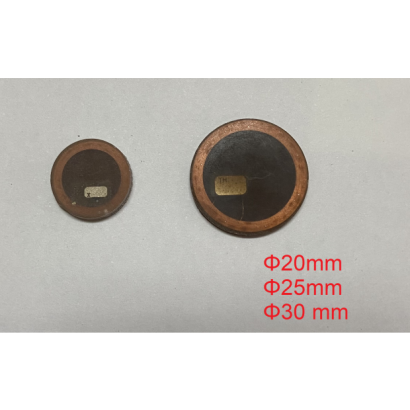

Coin Tag:

Applications:

Coin-type transparent rubber buckle/lane control


Descriptions:

The RFID Coin Tag is designed as a tag for The warehouse managerment, and property tracking, it can be install on the pallet, the cartons, the machine etc.

Specifications:







Frequency


125 KHz ± 3% N 13.56MHz±3%




Size


20Φ mm / (I) 25Φ mm / 30Φ mm




Weight


0.5g N 0.8g N 1.2g




Material


High temperature resistance resin




Color


Brown




Operating/Storage
Temperature


-20°C- +60°C




Package


50 pcs/box N 100 pcs/box




Available
RFID
Chip


: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
