RFID Sticker / Label (NFC&UHF)

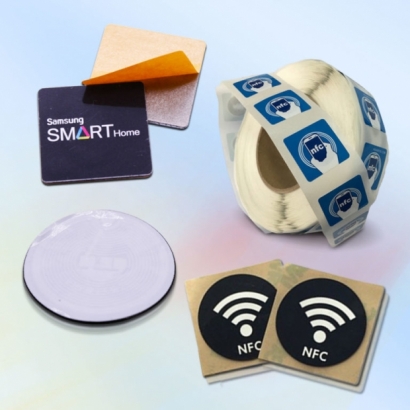

NFC Tag / Sticker

Descriptions:

An NFC tag has an NFC chip inside of it which performs the NFC interactions. There are several NFC chip types available and the choice of which NFC chip type to use is important. Each NFC chip has its own characteristics, features and cost. The NXP NTAG series is typically what customers use. The NXP NTAG series comes in a variety of data capacity sizes and they offer the best device compatibility, speed, availability and cost.

Applications:

Cashless Point of Sale, Cell Phones, Turnstiles, Vendors, Promotional Loyalty Systems, Parking Meters, Electronic Payments, etc.

Specifications:








Frequency


13.56M Hz+3%




Size


Thickness: 0.3mm without anti-metal layer, 0.7mm-1.0mm with anti-metal
layer
Other sizes can be customized




Material


PET N PVC • Aluminum




Operating Temperature


-10°C +60°C




Available
RFID
Chip


HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

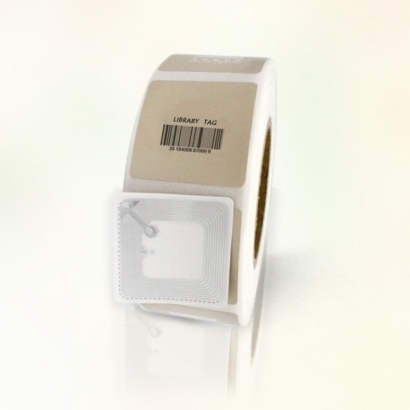

HF RFID Library Tag

HF RFID library tag is specially designed for library, which has excellent performance on the anti-interference of human body. It is more convenient for the library to check, assort and query books, which is widely used on books and important confidential document management.

Product Description

The RFID library tag has the ability to store information relating to the specific item to which they are attached, rewrite again without any requirement for contact or line of sight. Data within a tag may provide identification for an item, proof of ownership, original storage location, loan status and history.
It is thin, flexible and thus can be laminated between paper and plastic. With special method to attach to books, patron is totally unaware that the tag is there.

KEY BENEFITS



No line of sight needed


Allows to check-out and check-in several items simultaneously


Information directly attached to product


Performing both identification and anti-theft in one single operation


Different shape and sizes available


Able to tag almost anything


Accelerate scanning and identifying



Application



Library Management


Book Store


File Management


Museum Management



Specifications











Frequency


13.56M Hz+3%




Size


50mm*50mm or customized




Material


Aluminum+PET




Available
RFID
Chip


HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

Description:


HF labels operate at high frequencies typically around 13.56 MHz. and are compatible with NFC technology. HF labels are commonly used for applications that require short-range communication and data exchange, typically within a few centimeters to a few meters. HF label are widely used in contactless payment systems, access control, public transportation cards, and electronic identification cards.

Applications:

Uniform system/logistics/warehouse management

Specifications:







Frequency


13.56M Hz+3%




Size


20x26 / 16x43 / 43x43 / 50x50 / 86x54 (Size can be customized)




Material


Aluminum+PET




Operating/Storage
Temperature


-30°C~ +80°C




Available
RFID
Chip


HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

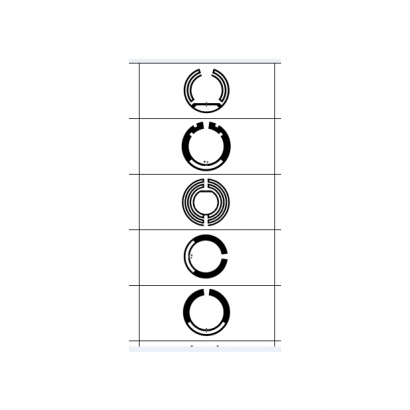

HF Label(round)

Description:

HF labels operate at high frequencies typically around 13.56 MHz. and are compatible with NFC technology. HF labels are commonly used for applications that require short-range communication and data exchange, typically within a few centimeters to a few meters. HF label are widely used in contactless payment systems, access control, public transportation cards, and electronic identification cards.

Applications:

Uniform system/logistics/warehouse management

Specifications:









Frequency


13.56MHz+3%




Size


25 Omm N 300mm(Size can be customized)




Material


Aluminum+PET




Operating/Storage
Temperature


-30°C~ +75°C




Available
RFID
Chip


HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

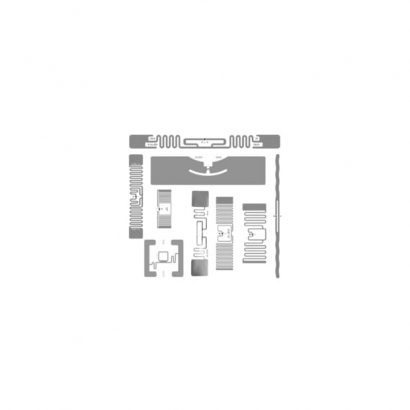

UHF Label(square):

Descriptions:

UHF labels operate at ultra-high frequencies, typically around 860 to 960 MHz. They are designed for long-range communication and can be read from several meters away, depending on the reader's power and environmental conditions. UHF labels are commonly used in supply chain management, inventory tracking, asset management, and logistics applications, where the ability to read multiple items quickly and from a distance is crucial.

Applications:

Uniform system/logistics/warehouse management

Specifications:







Frequency


865-868MHZ N 902-928MHZ±3%




Size


6x105 / 25x52 / 25x105( size can be customized)




Material


Aluminum+PET s Copper+PET




Operating Temperature


-30°C +75°C




Available RFID Chip


UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT






Copper:



Aluminum:

UHF Label(round):

Descriptions:

UHF labels operate at ultra-high frequencies, typically around 860 to 960 MHz. They are designed for long-range communication and can be read from several meters away, depending on the reader's power and environmental conditions. UHF labels are commonly used in supply chain management, inventory tracking, asset management, and logistics applications, where the ability to read multiple items quickly and from a distance is crucial.

Applications:

Uniform system/logistics/warehouse management

Specifications:








Frequency


865-868MHZ N 902-928MHZ±3%




Size


6x105 / 25x52 / 25x105( size can be customized)




Material


Aluminum+PET s Copper+PET




Operating Temperature


-30°C +75°C




Available RFID Chip


UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
