Reader

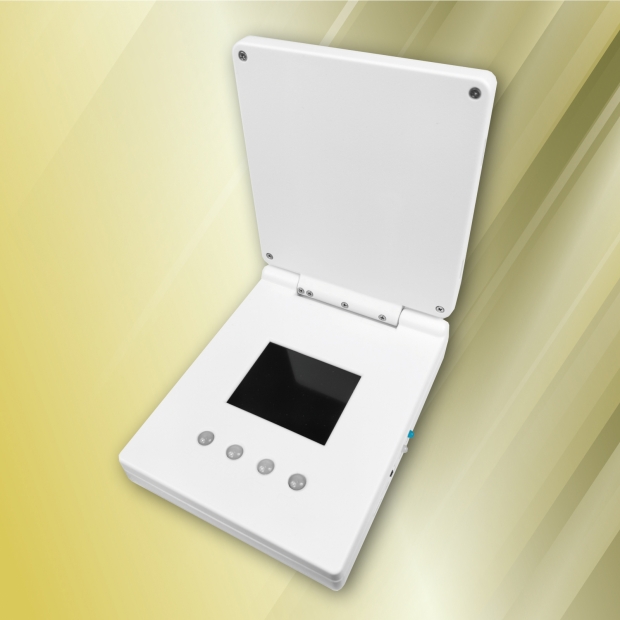

C220 is a lightweight, convenient, and easy-to-use handheld UHF RFID reader that complies with all standard protocols of ISO18000-6C (EPC GEN2).

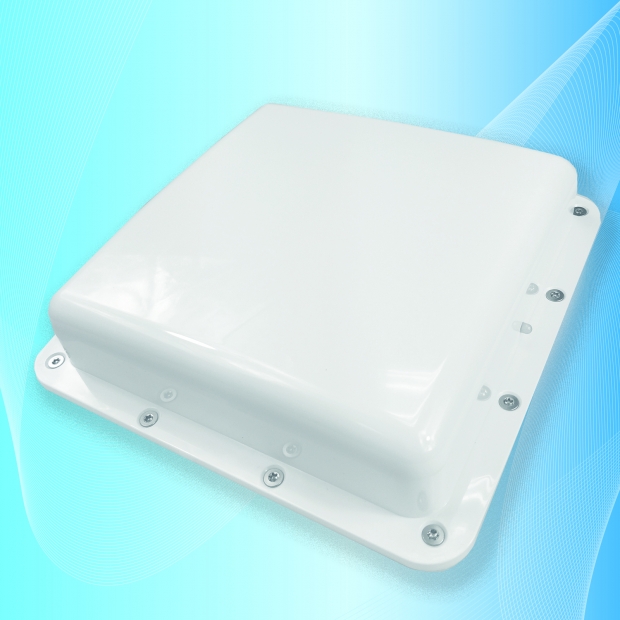

D190 features a built-in high-sensitivity 9dbi antenna and a 30dBm radio frequency module, and outputs RS485 and Weigand 34

Reader (LF / HF)

Descriptions (LF reader):

Energy saving, strong penetration ability, and little interference from the outside world; but the transmission data speed is slow, the amount of data stored in the tag is small, the data transmission rate is low, the flexibility is not easy, and it is not easy to be identified. One reads the electronic tag. Only suitable for low-speed, close-range identification applications.

Application:

Suitable for applications with short distance, low transmission rate, and small data volume, such as access control, attendance, electronic billing, and electronic wallet.

Descriptions (HF reader):

14443A / B,15693 protocol 14443A / B is the principle of electromagnetic induction near-field coupling, the distance is close, but there are many encryption protocols, mainly used for identity recognition; 15693 protocol is the principle of electromagnetic induction near-far field coupling, the distance is relatively Far away, mainly disturbed by metal.

Application:

Widely used in anti-counterfeiting traceability, high-frequency tags can be easily made into a card structure, typical applications include electronic identification, electronic tickets, and identification cards for campus cards and access control systems.

Specifications:









Frequency band


125 KHz ± 3% N 13.56MHz-±3%

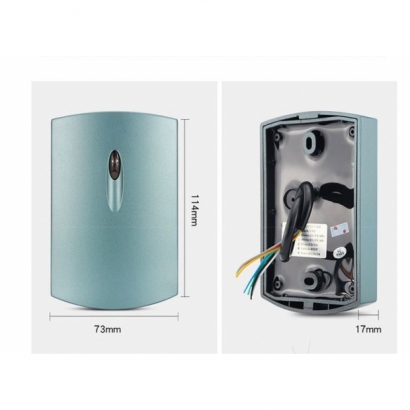

Dimensions


114 x 73 x 17 mm




weight


0.25 kg




Host interface


USB
Wegand
RS-232
RS-485




output format


RS232 Format data output (customizable)




Input voltage range


12\715V




Working current


<100MA




Card reading speed


< 0.2 S




Card type


EM / Mifare




Card reading method


26 / 34 (optional)




Operating temperature


-3085°C




Working humidity


10%~90`)/0




other


Status Indicator: 2-color LED ("red" power LED, "green"
status indicator)
Built-in horn: buzzer, can control LED and buzzer
Output format: support custom format




Readable IC


: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

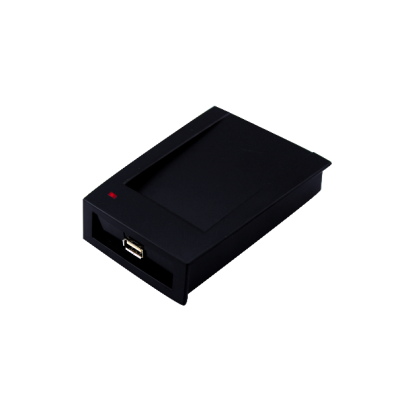

RFID Smart Card Reader:


Descriptions:

a high performance RFID smart card Desktop reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, such as automated parking management system, personal identification, access controller, production access control, etc.


Specifications:









Frequency band


125 KHz ± 3% , 13.56MHz±3%




Dimensions


104 mm x 68 mm x 10 mm




weight


140 g




Host interface


USB
Wegand
RS-232
RS-485




Output format


RS232 Format data output (customizable)




Input voltage range


5V




Working current


100MA




Card reading speed


0.2 S




Card type


EM / Mifare




Card reading method


26 / 34 (optional)




Operating temperature


-10℃~ +70℃




other


Status Indicator: 2-color LED ("red" power LED, "green"
status indicator)
Built-in horn: buzzer, can control LED and buzzer
Output format: support custom format




Readable IC


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard

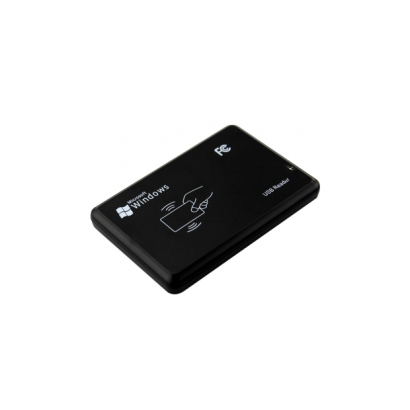

RFID Card Reader (plug and play):


Descriptions:

a high performance RFID smart card Desktop reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, such as automated parking management system, personal identification, access controller, production access control, etc.

Specifications:









Frequency band


125 KHz ± 3% , 13.56MHz±3%




Dimensions


104 mm x 68 mm x 10 mm




weight


140 g




Host interface


USB
Wegand
RS-232
RS-485




Output format


RS232 Format data output (customizable)




Input voltage range


5V




Working current


100MA




Card reading speed


0.2 S




Card type


EM / Mifare




Card reading method


26 / 34 (optional)




Operating temperature


-10℃~ +70℃




other


Status Indicator: 2-color LED ("red" power LED, "green"
status indicator)
Built-in horn: buzzer, can control LED and buzzer
Output format: support custom format




Readable IC


LF : EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577
HiTAG1 / HiTAG2 / HiTAG S2048




HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire
Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216
Mifare Plus / Mifare ultralight Evl / Mifare ultralight C
ISO 15693
I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200
ST LR12K / TI Tag-it HF-I Standard
