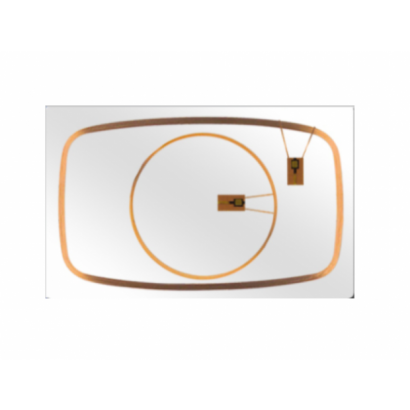

Dual Frequency Card:
Descriptions:
The smart card, such as Dual Frequency Card is a universal used and popular RFID transponder form factor. GN can establish card with PVC, PETG or even PETF to make the card body with enhanced heat-resistibility up to 100 degrees in Celsius. Furthermore, due to its comparatively larger antenna size than other product form factors, a card can fulfill a longer reading distance. Meantime, supply various ways to do artwork printing, surface finish and numbering to make your card look unmatched.
Applications:
Access Control / Personal Identification / Loyalty Program / Transit Pass
Features:
Custom artwork printing / ID numbering or personalization available /
Different materials for composite card / Dual Frequency is an option
Specifications:
|
Frequency
|
125 KHz ± 3% , 13.56MHz±3%,
865-868MHZ 902-928MHZ±3% |
|
Size
|
85.6 x 54 x 0.8 mm (LxWxH)
|
|
Weight
|
5.6g
|
|
Material
|
PVC, PVC+NPETG, PVC+PETF
|
|
Color
|
Pearl white N Lvory white
( Customized color availabe ) |
|
Options
|
Customized artwork printing: Offset / Silk Screen / Single
Card ID Numbering: Laser engraving / Inkjet printing Thermal printing Finish: Matt / Glossy / Thermo rewrite Film Others: Slot punch / mark, signature panel |
|
Protection Class
|
IP66
|
|
Operating Temperature
|
PVC: -25 to 50°C
PVC+NPETG: -25 to 50°C PVC+PETF: -30 to 70°C |
|
Storage Temperature
|
PVC: -25 to 50°C
PVC+NPETG: -25 to 60°C PVC+PETF: -40~100°C |
|
Package
|
200 Piece / Box 10 Box / 1 Carton 20 Box / 1 Carton
|
|

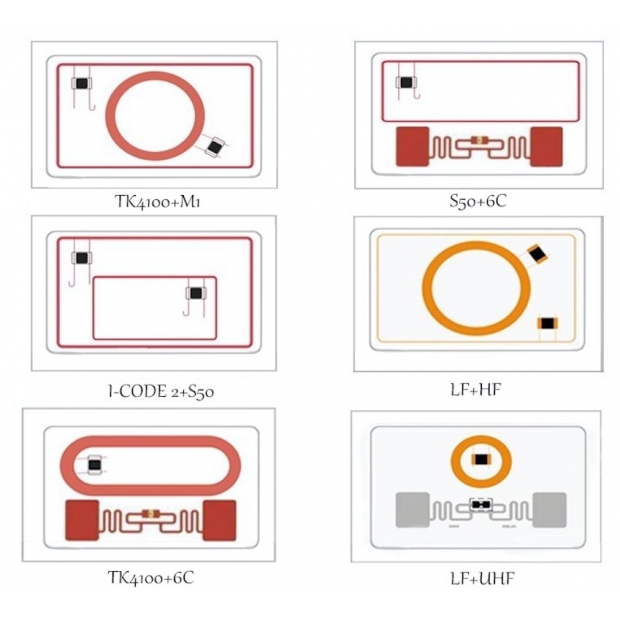

Available RFID Chip :
(Choose two) |
: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
|
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
|
