ISO Card
Descriptions:

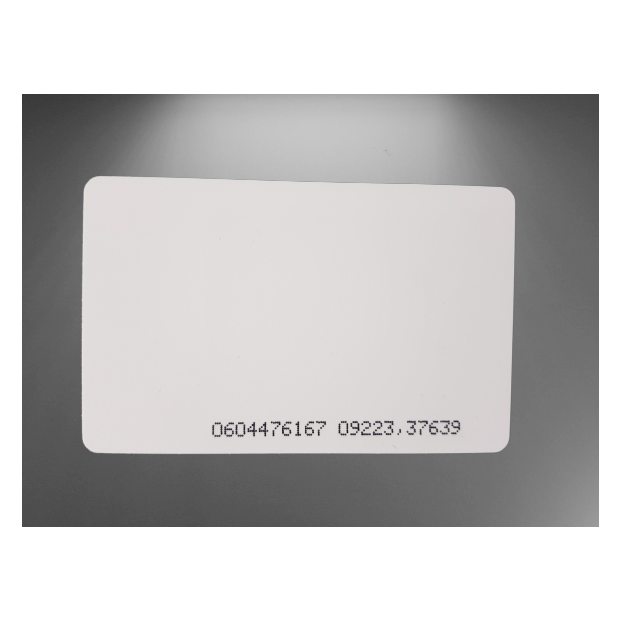

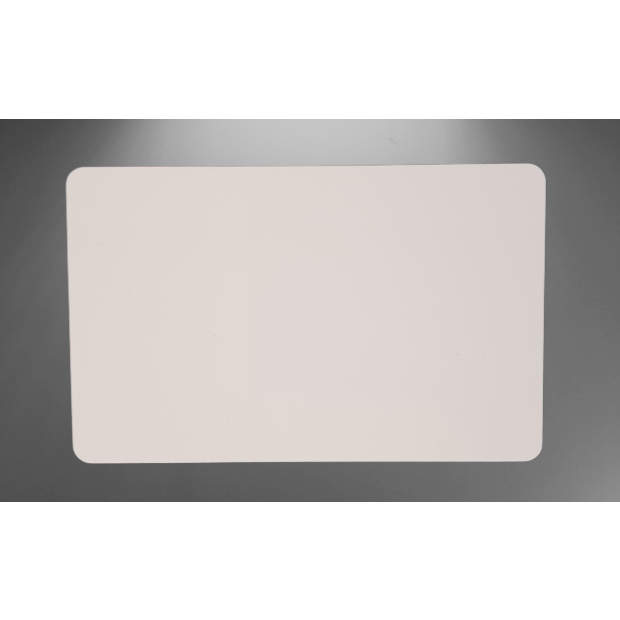

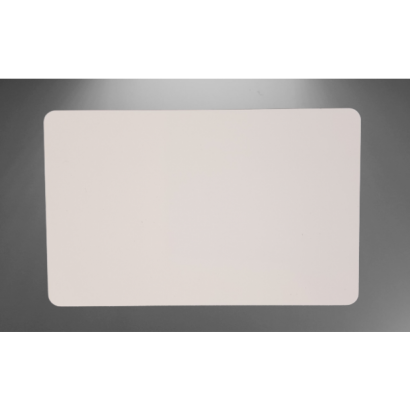

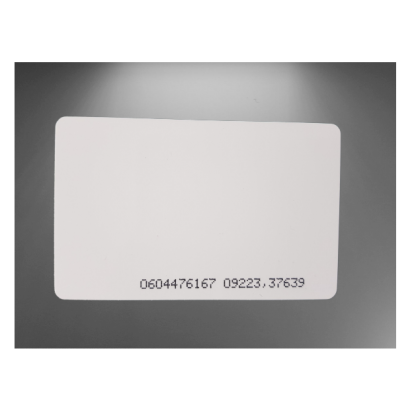

ISO Card is a universal used and popular RFID transponder form factor. GN can establish card with PVC, PETG or even PETF to make the card body with enhanced heat-resistibility up to 100 degrees in Celsius. Furthermore, due to its comparatively larger antenna size than other product form factors, the tapping card can fulfill a longer reading distance. Meantime, supply various ways to do artwork printing, surface finish and numbering to make your card look unmatched.
Applications:
Access Control / Personal Identification / Loyalty Program / Transit Pass
Features:
Custom artwork printing / ID numbering or personalization available /
Different materials for composite card / Dual Frequency is an option
Different materials for composite card / Dual Frequency is an option
Specifications:
| Frequency | 125 KHz ± 3% N 13.56MHz±3%N 865-868MHZN 902-928MHZ±3% |
| Size | 85.6 x 54 x 0.8 mm (LxWxH) |
| Weight | 5.6 g |
| Material | PVC PVC+NPETGN PVC+PETF |
| Color | Pearl white N Lvory white ( Customized color availabe ) |
| Options | Customized artwork printing: Offset / Silk Screen / Single Card ID Numbering: Laser engraving / Inkjet printing Thermal printing Finish: Matt / Glossy / Thermo rewrite Film Others: Slot punch / mark, signature panel |
| Protection Class | IP66 |
| Operating Temperature | PVC: -25 to 50°C PVC+NPETG: -25 to 50°C PVC+PETF: -30 to 70°C |
| Storage Temperature | PVC: -25 to 50°C PVC+NPETG: -25 to 60°C PVC+PETF: -40 to 100°C |
| Package | 200 Piece / Box 10 Box / 1 Carton 20 Box / 1 Carton |
| Available RFID Chip |
: EM4100 / EM4200 / EM4305 / EM4450 / TK4100 TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
| HF : ISO 14443A Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
| UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT |
