RFID Keyfob Rectangle-Iron:
Descriptions:
The rfid keyfob encompasses RFID technology with the ability to customize to a customer’s specifications. Users may choose from various colors and even add a corporate logo or design. Serial numbers may also be printed for easy identification.What we have:
- Variety of RFID IC on option (HF/UHF/LF) for alternation.
- Waterproof, Multiple Colors and Shapes.
- Laser Printing / Silkscreen Printing Logo.
Applications:
Access control system / Attendance system / Elevator floor control / Electronic Mailbox/NFC
Specifications:
|
Frequency
|
125 KHz ± 3% N 13.56MHz±3%
865-868MHZN 902-928MHZ±3% |
|
Size
|
49.6 x 26.0 x 5.1 mm (LxWxH)
45.0 x 27.5 x 5.3 mm (LxWxH) |
|
Weight
|
5.1 gN 5.4 g
|
|
Material
|
ABS • IRON
|
|
Key-ring Weight
|
8.8 g
|
|
Key-ring Material
|
Steel N Iron N Zinc-Alloy
|
|

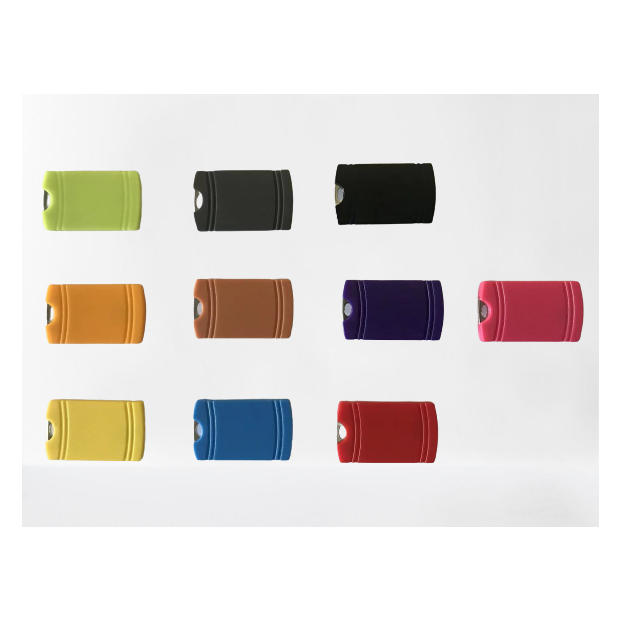

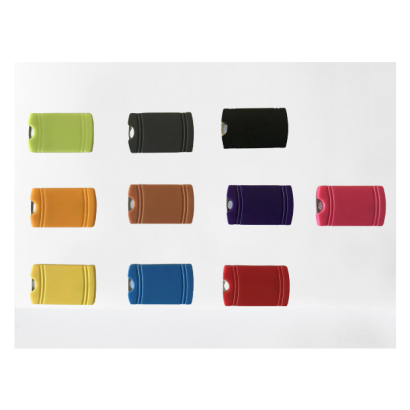

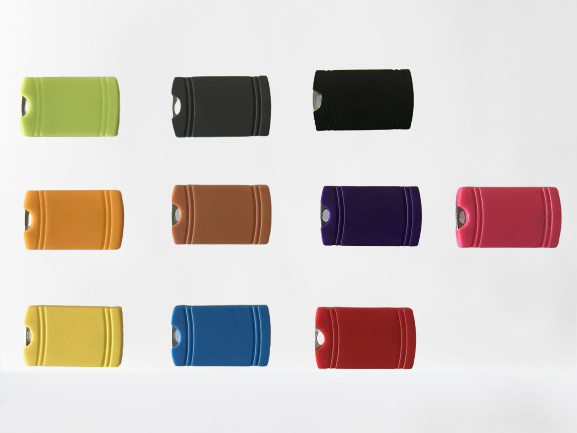

Color
|
Gray ( Customized color availabe )
|
|
Protection Class
|
IP66
|
|
Operating Temperature
|
-40°C- +60°C
|
|
Process
|
UltraSonic
|
|
Package
|
50 Piece / Box ; 20 Box / 1 Carton
|
|
Available
RFID Chip |
: EM4100 / EM4200 / EM4305 / EM4450 / TK4100
TEMIC 5530 / TEMIC 5567 / TEMIC 5577 HiTAG1 / HiTAG2 / HiTAG S2048 |
|
HF : ISO 14443A
Mifare S50 / Mifare S70 / Mifare Ultralight / Mifare Desfire Mifare F08/ Ntag 203/ Ntag 213/ Ntag 215/ Ntag 216 Mifare Plus / Mifare ultralight Evl / Mifare ultralight C ISO 15693 I-Code SLI / I-Code SLI-S / I-Code EPC / MSR3200 ST LR12K / TI Tag-it HF-I Standard |
|
|
UHF : Nxp U8 / Nxp U9 / IMPINJ Monza 4QT
|

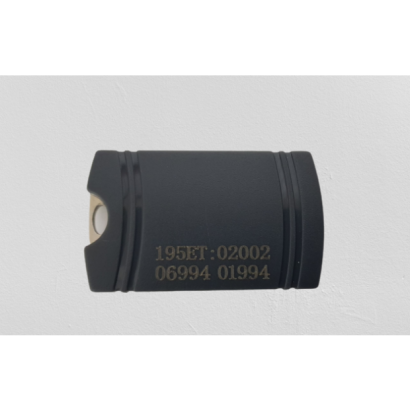

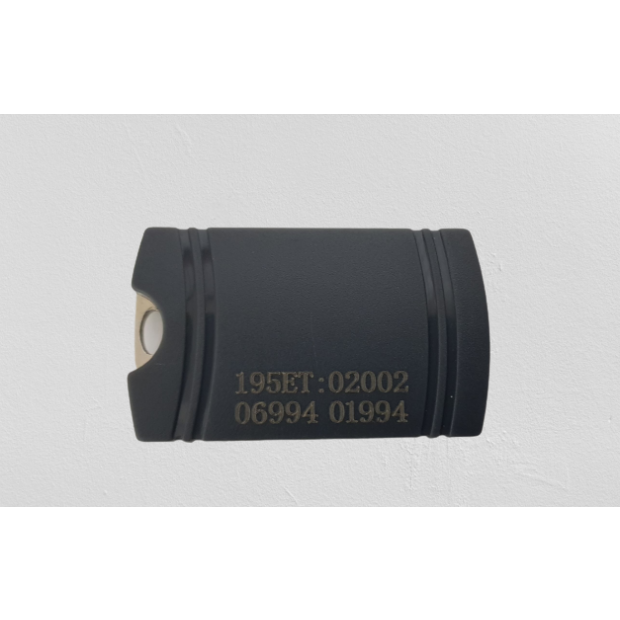

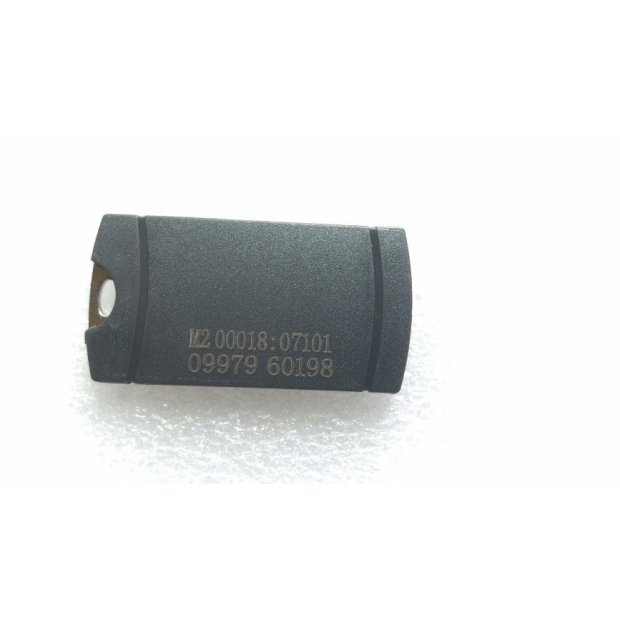

Laser engraving:
The customer provides the image/ laser engraving format (monochrome, gradient effect can not be laser engraved) to develop the laser engraved format or pattern effect.
.png)

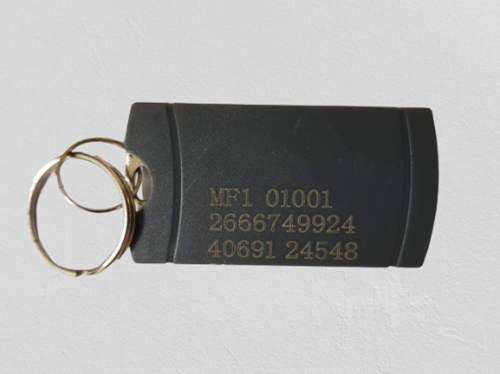

Inkjet number:
The internal code of the card or TAG is printed on the product by means of a typeface head, and there are many kinds of coding formats, which can be provided by the customer or in the company's standard format (the company's coding format sample) to spray the code.
.png)
Other items:
The type of key ring hooking, product size, appearance color, and induction frequency can be customized.
